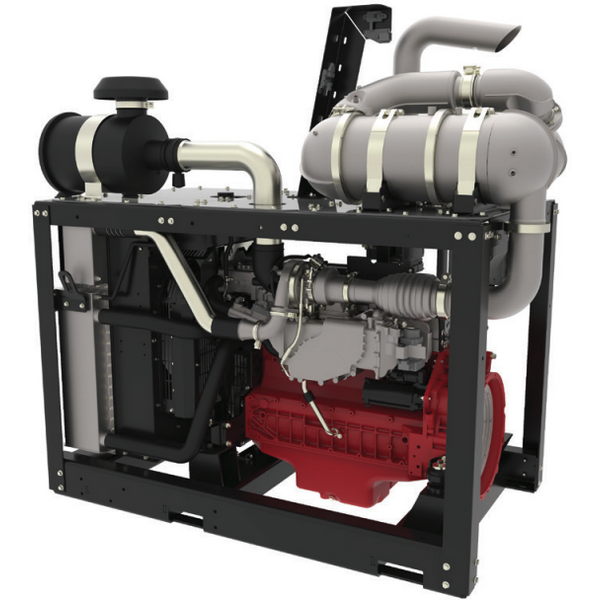

Deutz TCD 6.1 L6 Power Pack
DEUTZ factory-built Power Packs are compact, ready-to-install engine solutions for mobile machinery. Designed for use in the construction, agricultural and industrial markets, each Power Pack is fully tested and validated to offer a robust and completely integrated power package. Not only are they easy to install, but they also offer the industry’s lowest installed and operational costs. And, they come with the same exclusive warranty as new DEUTZ engines.
The DEUTZ TCD 4.1 and TCD 6.1 Power Packs are ready-to-run packages available in two different versions: open skid and closed skid. Each version is supported by a large range of options and accessories. Both the open skid and closed skid Power Packs are free-standing, and their after-treatment systems come installed by DEUTZ-trained personnel.
Features
- The Power Packs feature the proven and robust, water-cooled, 4- and 6-cylinder inline diesel engines with cooled, externalexhaust-gas recirculation. Each unit includes a mounted cooling-and-guard package, and engines can be equipped with a suction or pusher fan.
- The engines meet the requirements of the EU Stage IV and US EPA Tier 4 with DVERT® selective catalytic reduction (SCR) and a diesel particulate filter (DPF). These units already comply with the latest EU Stage V emissions standards. Versions are also available for export to lower regulated countries (LRC).
- DEUTZ factory-built Power Packs offer the renowned performance and reliability associated with all DEUTZ engines and powered equipment. They’re ideal for use in a wide range of equipment.
Deutz TCD 6.1 L6 Power Pack Specifications
| TCD 6.1 L6 Power Pack - 180 kW | |
| Hp | 241 |
| kW | 180 |
| RPMs | 2300 |
| Lbft | 738 |
| Nm | 1000 |
| Liters | 6.1 |
| Cubic Inches | 370 |
| Dry Weight | 1367 lbs |
| Cylinders | 4 |
| Cycle | 4 Stroke |
| Emissions |
US EPA Tier 4F EU Stage V |
