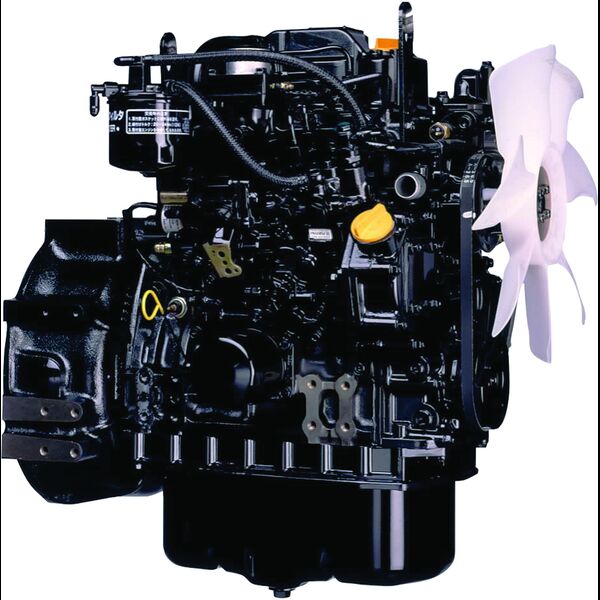

Isuzu 3CH1 Engine
The Isuzu 3CH1 diesel engine provides industry leading performance and holds up to the Isuzu mantra of "Performance that goes to work". This engine is offered in a 14.9 HP, constant speed rating option along with a 23.9 HP, variable speed rating option.
Features
- Displacement: 0.9 L – 1.6 L
- Naturally aspirated
- Peak torque: 36.5 lb/ft – 45.1 lb/ft (varies by model)
- Fuel consumption: .413 LB/HP-HR – .465 LB/HP-HR
- Flywheel housing: SAE 5 – 6
- Electronic self-priming fuel lift pump
- 12V electronics
- Glow plug starting aid
- High angularity oil pan
- 250-hour or 500-hour oil drain & service interval
- 2-year / 2,000-hour limited warranty*
Isuzu 3CH1 Engine Models
| 3CH1 (14.9 HP) | 3CH1 (23.9 HP) | |
| Hp | 14.9 | 23.9 |
| kW | 11.1 | 17.8 |
| RPMs | 1800 | 3000 |
| Liters | 1.3 | 1.3 |
| Cubic Inches | 79.3 | 79.3 |
| Dry Weight | 326 lbs | 326 lbs |
| Cylinders | 3 | 3 |
| Cycle | 4 Stroke | 4 Stroke |
| Engine Rating | Constant Speed | Constant Speed |
| Emissions |
US EPA Tier 4F EU Stage V |
US EPA Tier 4F EU Stage V |
