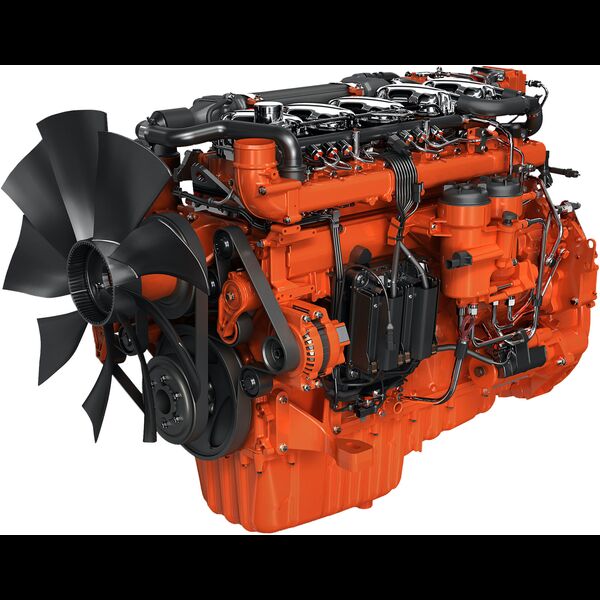

Scania DC09 311A Engine
The Scania DC09 311A diesel engine takes performance, dependability and operating economy to new heights. This engine is offered with two different power ratings. A 275 HP and 326 HP option.
Features
- Scania Engine Management System, EMS
- Extra high pressure fuel injection system, XPI
- Variable Geometry Turbocharger
- Saver ring in cylinder liner
- Fuel filter and extra pre-filter with water separator
- Thermal recirculation fuel heater
- Oil filter, full flow
- Centrifugal oil cleaner
- Oil cooler, integrated in cylinder block
- Oil filler, in cylinder block
- Deep front oil sump
- Oil dipstick, in cylinder block
- Magnetic drain plug for oil draining
- Starter motor, 1-pole 6.0 kW
- Alternator, 1-pole 100 A
- Flywheel, for use with friction clutch
- Silumin flywheel housing, SAE 1 flange
- Front-mounted engine brackets
- Particulate filter and SCR in 2-unit distributed aftertreatment
- Open crankcase ventilation
Scania DC09 311A Engine Models
| DC09 311A (275 HP) | DC09 311A (326 HP) | |
| Hp | 275 | 326 |
| kW | 202 | 240 |
| RPMs | 1800 | 1800 |
| Lbft | 950 | 994 |
| Nm | 1289 | 1348 |
| Liters | 9.3 | 9.3 |
| Cubic Inches | 567.5 | 567.5 |
| Dry Weight | 2094 lbs | 2094 lbs |
| Cylinders | 5 | 5 |
| Cycle | 4 Stroke | 4 Stroke |
| Engine Rating | Constant Speed (ICFN) | Constant Speed (ICFN) |
| Emissions |
EU Stage V |
EU Stage V |
