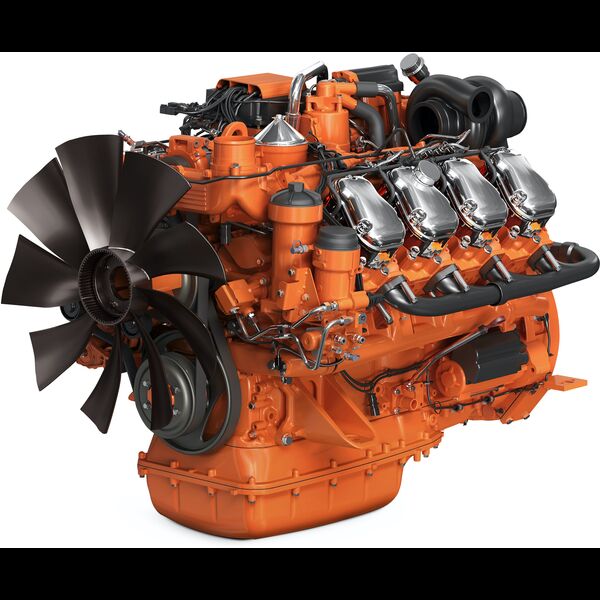

Scania DC16 071A Power Generation Engine
The Scania DC16 071A power generation engine can be used as the primary power source at remote sites and entertainment venues or as a back-up power in demanding operations and critical societal functions. Scania 16 liter power generation engines provide trouble-free power when and where needed. This engine is offered with power ratings ranging from 438 kW to 483 kW.
Downloads
Features
- Scania Engine Management System, EMS
- Unit injectors, PDE
- Turbocharger
- Fuel filter and extra pre-filter with water separator
- Oil filter, full flow
- Centrifugal oil cleaner
- Oil cooler, integrated in cylinder block
- Oil filler, in valve cover
- Deep front oil sump
- Oil dipstick, in cylinder block
- Magnetic drain plug for oil draining
- Starter motor, 1-pole 7.0 kW
- Alternator, 1-pole 100 A
- Flywheel, SAE 14
- Silumin flywheel housing, SAE 1 flange
- Front-mounted engine suspension
- EGR system
- Open crankcase ventilation
Scania DC16 071A Power Generation Engine Models
| DC16 071A (438 kW) | DC16 071A (483 kW) | DC16 071A (480 kW) | |
| kVA | 500 | 540 | 549 |
| kW | 438 | 483 | 480 |
| RPMs | 1500 | 1800 | 1500 |
| Liters | 16.4 | 16.4 | 16.4 |
| Cubic Inches | 1000.8 | 1000.8 | 1000.8 |
| Dry Weight | 2954 lbs | 2954 lbs | 2954 lbs |
| Frequency | 60 | 60 | 60 |
| Cylinders | 8 | 8 | 8 |
| Cycle | 4 Stroke | 4 Stroke | 4 Stroke |
| Engine Rating | PRP | PRP | PRP |
| Emissions |
EU Stage IIA |
EU Stage IIA |
EU Stage IIA |
